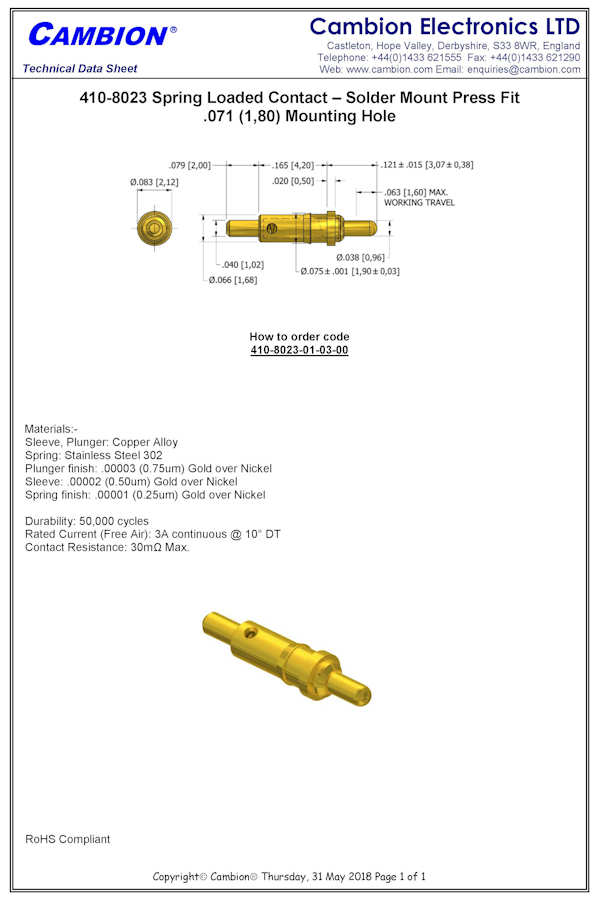

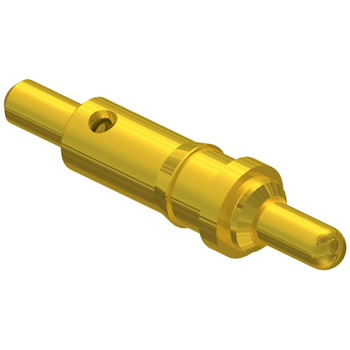

410-8023-01-03-00 : Spring Loaded Contact - Solder Mount press fit .071 (1,80) mounting hole
Download CAD Data
How to order code
410-8023-01-03-00
Check part availability
Material Code Table
ComponentMaterialFinish
Sleeve Copper Alloy .00002 (0.50um) Gold over Nickel
Plunger Copper Alloy .00003 (0.75um) Gold over Nickel
Spring Steel 302 .00001 (0.25um) Gold over Nickel
Finish Code Table
Dash NoBody FinishSpring FinishRoHS
-03Gold over NickelGold over NickelRoSH compliant
Notes
Durability50,000 cycles
Rated Current (Free Air)3A continious @ 10° DT
Contact Resistance30mΩ Max.
Mounting Examples

Other styles and configurations available, please consult factory.
